1/12 Scale Earth Digger 4200XL Hydraulic Excavator (Ready to Run)(Version 1.5)

Payment Information: Due to the value of this product, all customer must pay with bank transfer. When you check out, do not choose credit card or paypal, we will refund you. Make sure choose bank transfer instead. Feel free to email us if you have any questions.
Important Note: This product is for experienced R/C users. Not recommended if you just started with R/C.
Specification:
- 100% CNC machined aluminum (except track and hydraulic pump)

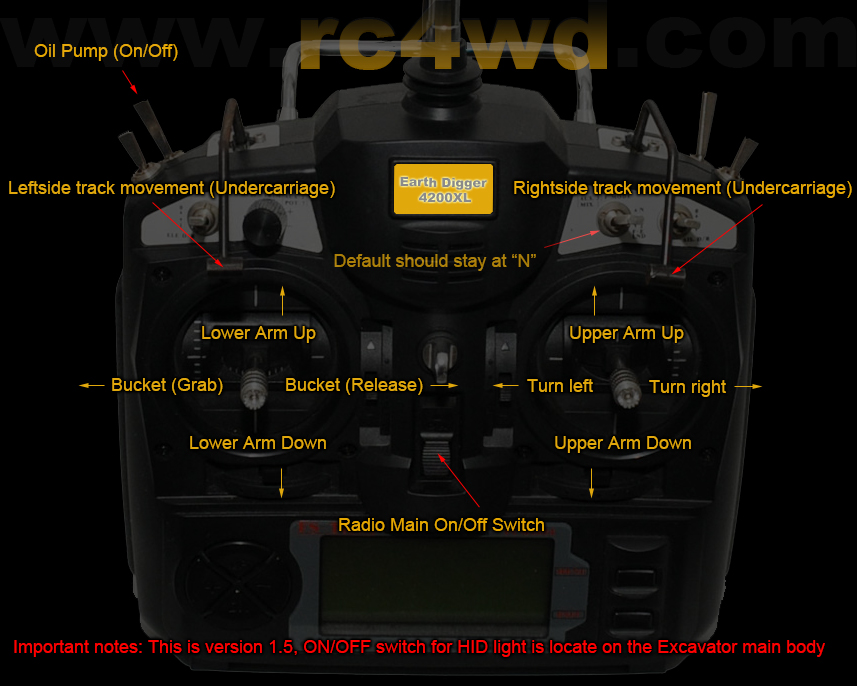

- Custom 8 channel 2.4Ghz radio
- High Intensity Light (Super bright) (3 Watt)
- Optimized steel hydraulic system
- Scale operator station (can fit a driving figure and seat)
- Steel molded tracks (50mm width, 45 grade carbon steel)
- Efficient under carriage with tracks
- Reliable hydraulic valve and adjustable pump
- Heavy duty hoses (OD 4.5mm Nylon, ID 2.5mm)
- Bearing based undercarriage design
- Undercarriage rotate 360 degrees (endless)
- Powder coated in yellow
- Massive brushless system (hydraulic)
- 125A brushless ESC with BEC
- 350Kv brushless monster torque motor (4130 OutRunner, 6mm shaft)
- Neodymium magnets
- Belt/track is track is controlled individually
- Run time is: 40-50 minutes (6500mAh battery)
- Steel machined oil pump (45mm X 30mm X 15.5mm)
- Digging force: 15kg/33pounds
- Driving speed: 310 meter per hour
- Scale: 1:12
- Dig depth: 495mm/19.4inch
- Height of cabin: 155mm/6.1inch
- Length: 1.15meter/45inch
- Width: 250mm/9.8inch
- Height: 840mm/33inch
- Deadweight: 20kg/44lbs
- Operating oil pressure: 20Bar, 290psi
- Manufactured by JDCustoms
- 30 days limited warranty
What's included:
- 1/12 JDCustoms Earth Digger 4200XL Hydraulic Excavator (RTR) (Version 1.5)
Additional parts needed:
- Lipo Charger (Part # Z-E0037)
- 3S 6500mAh 11.1v 20c Lipo battery (Max size: 73mm X 80mm X 132mm) (Part # Z-E0038)
- ESC support bullet connector
Optional upgrade:
- Scale Heavy Duty Flat Bed Transporter (Part # VV-JD00001)
Note: During operation, HID light might flash due to power drain.
Warranty information
This product is made for heavy duty usage. Since there is no plastic parts, its designed to last. But hydraulic pump, hoses and electronics system can break over time. Do not let the system overheat during usage. We will have all spare parts available for sell. Pump, hoses are electronics system is not covered under warranty, but we do guarantee fully functional at arrival. Each unit is full tested twice before we ship.
Each unit is professionally assembled, adjusted and tested. Do not adjust the oil pressure switch. Oil pressure will drop as you operate over time.
Gathering in Norway:
Strength Test Video by Martin Hough "Click Here
Digging Test Video by Martin Hough "Click Here
